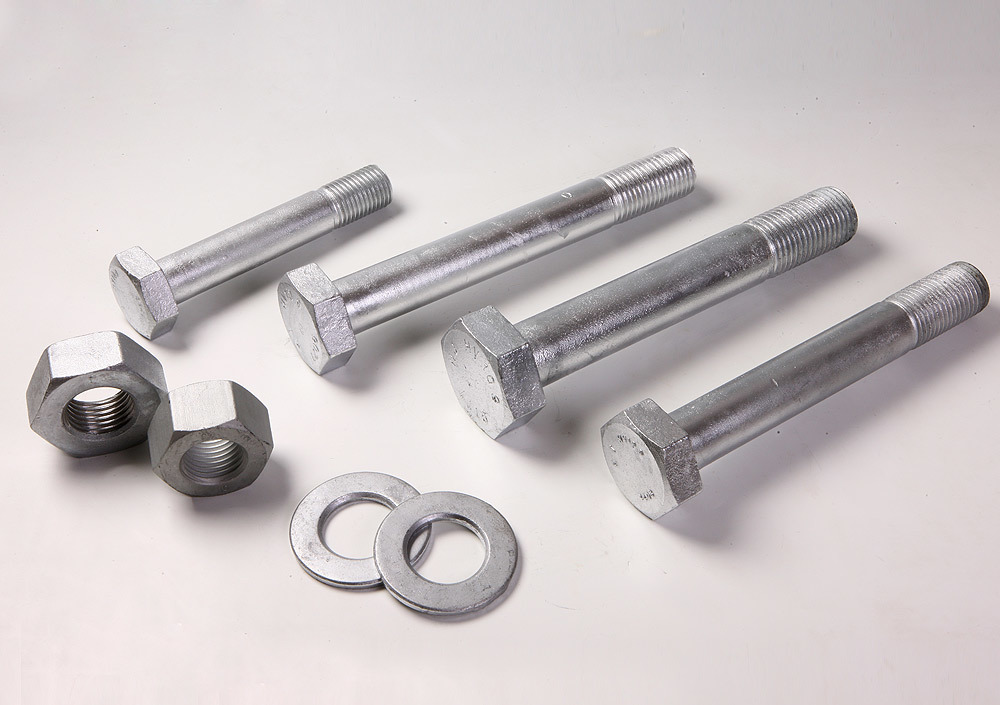

Renewable Energy Fasteners Manufacturer: Solar Mounting Bolts, Wind Tower Bolts and Grid Bolting

WF Fastener is a renewable energy fastener manufacturer and supplier in China, specializing in solar mounting bolts, wind turbine tower bolts and transmission line bolting for utility-scale power projects. We supply EPC contractors, mounting system integrators and renewable energy distributors across the Middle East, Europe, Southeast Asia and Australia, with coating and certification packages matched to each project's specification.

WF Fastener — Renewable Energy Fastener Quick Reference:

- Applicable standards: EN 14399-3 / -4 (HR / HV), EN ISO 4017 / 4014, EN 1090-2, ISO 898-1, ISO 10684, EN ISO 10683, ISO 12944

- Coatings and corrosion resistance: Zn-Al-Mg (2,000+ hours neutral salt spray per ISO 9227), zinc-flake (1,000–1,500 hours, zero hydrogen embrittlement risk), HDG (ISO 1461 / ISO 10684)

- Target projects: Solar PV trackers and fixed-tilt arrays, wind tower flange connections (M36–M42, 10.9), lattice transmission towers and substations (C4/C5 environments per ISO 12944)

Why Renewable Energy Projects Need a Dedicated Fastener Supplier

On utility-scale solar and wind projects, fastener failure shows up as galvanic corrosion between coated carbon steel bolts and aluminum rails, coating damage during installation, and missing preload control on tower flanges. These are the field failures our engineers are called in to replace most often, and each one traces back to a specification gap at the design stage.

A dedicated renewable energy fastener supplier controls the coating specification, the thread fit after coating, and the documentation trail — so the mounting system holds its design preload for the full project life.

Product Range: Solar, Wind and Grid Fastening

Solar Mounting System Bolts

For solar mounting systems, the fastener package includes rail splice bolts, module clamps, end clamps, T-bolts, ground screws and torque-tube connections for trackers. The specification comes down to two engineering decisions:

• Coating choice — hot-dip galvanizing (ISO 1461 / EN ISO 10684) for steel structures, or Zn-Al-Mg coated fasteners where approved by the project specification and coating system requirements.
• Material pairing and anti-galling — A2-70 / A4-80 stainless steel fasteners paired with aluminum rails include factory-applied anti-galling wax coating (per ISO 3506) to prevent thread galling during high-speed impact wrench installation.

Thread fit is verified after coating with tapped nuts, because a 55–85 µm galvanized layer changes the pitch diameter. Thread tolerance classes follow ISO 6g for bolts with 6AZ / 6H nuts per ISO 10684, and we supply coated bolts with oversize-tapped matching nuts for field-assembled systems.

Wind Turbine Tower Bolting

Tower flange connections use high-strength HV bolts per EN 14399-4 (or HR bolts per EN 14399-3), typically M36–M42 in property class 10.9, tensioned to a calculated preload with hydraulic tensioners. The control points that matter on every lot are:

• Hardness and microstructure — heat treatment verified per lot, with hardness testing on 100% of critical batches
• Thread friction control — lubricated threads with verified friction coefficient (K-factor) so tensioner readings are repeatable
• Tensile testing, suitability testing and assembly performance verification according to EN 14399 requirements
• Coating specification — zinc-flake coating per EN ISO 10683 is preferred for 10.9 HV/HR tower bolts, eliminating hydrogen embrittlement risk from acid pickling and avoiding fatigue debit under dynamic wind loads; where HDG per ISO 10684 is required, blast-cleaning without acid pickling and mandatory hydrogen-relief baking are enforced

Each tower bolt set ships with the property class, heat number and coating certificate, so the erection team can verify conformance before tensioning.

Need wind bolting technical support? Request EN 14399 M36–M42 preload and K-factor test certificates, or ask our engineers for zinc-flake coating corrosion data.

Transmission Tower and Grid Bolting

For lattice transmission towers and substation structures, bolts are typically Q235 or Q355 carbon steel, hot-dip galvanized per ISO 1461, with matching nuts and washers. Large-diameter bolts for heavy cross-arms and earth connections follow the project standard with mechanical property verification per GB/T 3098.1 or the equivalent international class.

Where projects specify higher corrosion protection, we supply Zn-Al-Mg coated bolts for transmission hardware, combining sacrificial protection with a thinner, harder coating that resists transport damage better than HDG.

Coatings for Renewable Energy Fasteners

• Hot-dip galvanizing per ISO 1461 / ISO 10684 — the workhorse for steel solar structures and transmission towers
• Zn-Al-Mg coating — improved cut-edge and scratch protection for coastal solar and tracker projects
• Zinc-flake coating — for high-strength 10.9 bolts where HDG thickness would affect thread fit or fatigue
• Stainless steel as-supplied — A2-70 / A4-80 for module clamps and coastal hardware
• Lubrication and friction control — verified K-factor for tensioned wind and structural connections

Coating thickness is verified per the project coating specification, with thread fit checked after coating where applicable. Corrosion protection systems can be selected according to ISO 12944 corrosivity categories (for example C4/C5 environments) where specified.

Documentation and Quality Control

• EN 10204 3.1 inspection certificates for material and mechanical properties (3.2 with third-party witnessing where specified)
• Heat number traceability from bar stock to finished bolt
• Hardness and tensile test reports per lot
• Coating thickness and thread fit verification reports
• First-article inspection reports for non-standard and drawing-based bolts

Supported by our in-house testing laboratory and quality documentation system, all documentation is compiled and verified before dispatch, so EPC and system integrators receive an audit-ready package with the shipment.

Why EPCs and Mounting System Integrators Choose WF Fastener

• Dedicated cold-forming and thread-rolling lines for M12–M42 solar and wind structural hardware
• Optical sorting and automated thread-gauging lines for 100% compliance on coated and oversize-tapped assemblies
• Dedicated production and testing for renewable energy bolting rather than generic commercial fasteners
• Coating expertise across HDG, Zn-Al-Mg and zinc-flake, with thread fit verified after coating
• Documentation ready before dispatch — EN 10204 3.1 and inspection reports structured for project audits
• Standards compliance — primary EN, ISO and DIN execution, with cross-reference mapping for GB equivalents per project specifications
• Logistics through major China ports with inspection coordination for third-party witnessing

FAQ

Q: What is the difference between hot-dip galvanized and Zn-Al-Mg coated bolts?

A: Hot-dip galvanizing (ISO 1461 / ISO 10684) applies a thick zinc layer, typically 55–85 µm, giving long sacrificial protection for steel structures. Zn-Al-Mg coatings are thinner (typically 10–20 µm) with a zinc-aluminum-magnesium alloy that offers improved cut-edge, scratch and corrosion resistance, especially in coastal environments.

Q: Which bolts are used for wind turbine tower flange connections?

A: Tower flange connections typically use EN 14399-4 HV bolts (or EN 14399-3 HR bolts) in property class 10.9, sizes M36–M42, tensioned to a calculated preload with hydraulic tensioners. Thread friction, hardness and elongation are verified per lot.

Q: Do you supply stainless steel bolts for solar mounting systems?

A: Yes. We supply A2-70 and A4-80 stainless steel bolts, T-bolts and module clamps for solar mounting systems, particularly where stainless fasteners are specified against aluminum rails to prevent galvanic corrosion.

Q: What coating do you recommend for coastal solar projects?

A: For coastal C4/C5 solar installations, engineers primarily specify either Zn-Al-Mg coated carbon steel bolts or A4-80 stainless hardware. Zn-Al-Mg coatings (10–20 µm) typically achieve over 2,000–3,000 hours in neutral salt spray testing (ISO 9227) without red rust, outperforming conventional 55–85 µm HDG in coastal C5 environments while providing self-healing cut-edge protection; A4 stainless is specified where full corrosion immunity is required for the hardware.

Q: Do you provide EN 10204 3.1 certificates for renewable energy bolts?

A: Yes. We provide EN 10204 3.1 inspection certificates with heat number traceability for material and mechanical properties, and 3.2 with third-party witnessing where the project specifies it.

Q: Can you manufacture bolts to drawings for non-standard renewable energy applications?

A: Yes. Drawing-based production is our standard workflow — we review the drawing, confirm the material and coating, produce first articles and deliver with dimensional inspection reports.

Request a Quote for Your Renewable Energy Bolting

Send the project type (solar tracker, fixed-tilt, wind tower, transmission line), bolt sizes, property class, coating and quantity — or the drawing. Our engineering team will confirm the standard, coating thickness, certificate scope and delivery schedule within one working day.
